V-belts
PIX V-belt ranges are designed for high efficiency and reliability in a variety of industrial applications. They offer a wide range of products to meet specific customer needs, including belts with high resistance to wear, oil and temperature changes. PIX V-belts are recognized for their long service life and superior performance in harsh environments.
WRAPPED V-BELTS
KLÍNOVÉ ŘEMENY OZUBENÉ
____________________________________________________________________________________
V-BELTS COATED
PIX-X'set® Wrapped belts
Applications: industrial drives, generators, blowers, mills, crushers, compressors, pumps, grinders, household appliances, cement blasting
Reference standards: - IS 2494, BS 3790, ISO 4184 - DIN 2215-1975 - RMA IP-22 - RMA IP-23 - DIN 7753
Features
- Special outer fabric with CR treatment for higher durability
- Antistatic, oil and heat resistant
- Maximum linear belt speed (classic profiles: up to 30 m/s, narrow (ISO) profiles: up to 42 m/s, narrow (RMA) profiles: up to 45 m/s)
- Temperature range: -30°C to +80°C
Construction details
- Wear-resistant, neoprene rubberized polyester cotton fabric
- Rubber compound for high strength rope placement
- Specially treated polyester cords with high strength, low stretch
- Specially compounded high modulus compression rubber
PIX-Muscle®-XS3 Performance coated maintenance-free belts
Application: hot rolling mills, power plants, heat exchangers, compressors, vacuum pumps, mills, furnaces, mixers, paper industry, etc.
BS 3790, ISO 4184 - RMA IP-22.
Features
- High performance - up to 50% higher than standard belts
- High efficiency up to 98% - Special cords for maintenance-free operation
- Extended service life, higher reliability
- Anti-static, ISO 1813 compliant
- Good resistance to oil and heat
- Compliant with REACH and RoHS regulations
- Extended temperature range from -25°C to +100°C
Design details
- High wear-resistant outer sheath, offers higher grip strength
- Maintenance-free, low stretch, premium polyester cords prevent belt elongation
- Fiber-filled base compound for increased transverse stiffness
PIX-Terminator®-XS High performance coated belts and aramid cord
Application: vibratory screeners, reclaimers, crushers, high performance mixers, forest machines, chippers, surface mining, stackers, stone crushers, jaw crushers, cone crushers, ball mills, etc.
BS 3790, ISO 4184, - RMA IP-22
Features
- High transmission capacity - up to 55% higher than standard belts
- Specially treated outer coating of tough fabric reduces sidewall wear and offers increased flexibility
- Special fabric with lower coefficient of friction and better heat dissipation
- Special aramid cords with high tensile strength and minimal elongation
- Developed for increased durability, strength, wear resistance
- High resistance under impact and impulse loads
- Extended temperature range: -25°C to +100°C
Design details
- Specially treated outer cover fabric reduces sidewall wear and offers excellent flexibility
- Specially treated aramid tensile member provides extra strength and low stretch in the belt
- Specially engineered fiber blend provides excellent modulus to allow for high power transmission

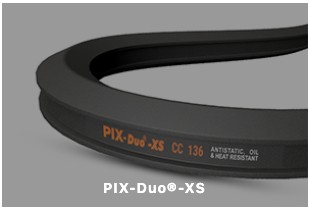

PIX-DUO® -XS Double-sided (hexagonal, hexagonal) wrapped V-belts
Use: Rice mills, peelers, serpentine drives, poultry feather collectors, dyeing units, garden machinery, etc.
IS 11038-1984
Features
- Extended service life
- Energy transfer from both sides of the belt
- Centre cord provides excellent power transmission and low elongation
- Special design provides flexibility for serpentine drives
- Temperature range: -30°C to +80°C
Design details
- Wear-resistant, neoprene rubberized polyester cotton fabric
- High toughness, low stretch member
- High modulus compression rubber.
PIX-FRAS®-XR Fire resistant anti-static coated belts
Applications:Petrochemical industry, coal mines, fire-prone areas, pumping stations, applications involving flammable substances, etc.
Reference standards: ATEX Certification - IS 2494 Part-II - ISO 1813, BS 3790 - ISO 5290, ISO 5291 - ISO 4148, RMA IP-22 - DIN 7753, DIN 2215
Features
- Provide a high level of protection against fire hazards
- Fire resistance properties comply with IS 2494 Part-II
- Antistatic values are 10 to 15 times higher than the maximum limit according to ISO 1813
- ATEX certification
- Resistance to release of flammable substances during operation
- Longer service life
- Antistatic, oil and heat resistant
- Extended temperature range: -25°C to +100°C
Design details
- Special textile layer
- High-strength FRAS cord rubber insert
- Specially treated and stabilized polyester cord
- Fiber-filled high-modulus base compression rubber to meet fire-resistant and anti-static properties
- Molded toothing for improved flexibility
PIX-IGLOO®-XS Low temperature coated belts
Application: cooling tunnels, cold stores, low ambient temperature drives, etc.
BS 3790, IS 2494, ISO 4184 - RMA IP-22, ISO 5290 - ISO 5291
Features
- Good performance when operating at extremely low ambient temperatures
- Longer service life
- High resistance to belt cracking ensures smooth operation at low temperatures
- Temperature range: -45°C to +80°C
Design details
- Wear-resistant, neoprene rubberized polyester cotton fabric
- Rubber compound for high strength rope placement
- Specially treated polyester cords with high strength, low stretch
- Specially compounded high modulus compression rubber to withstand low ambient temperature
PIX-DryCover®-XS Non-rubber coated belts
Application: food industry, clutch drives (slip clutch), etc.
BS 3790 - RMA IP-22, RMA IP-23
Features
- Belt surface (textile cover) low coefficient of friction, suitable for "slip" drives (clutch start-up function)
- Suitable for applications where dust generation is undesirable
- Available with aramid and polyester cord
- Available in various colours - blue, green, brown, black and white
- Temperature range: -18°C to +80°C
Construction details
- Specially designed bare fabric facilitates smooth clutch operation and high wear resistance
- Rubber compound for high strength wire rope placement
- Specially treated polyester cords with high strength, low stretch
- Specially compounded high modulus compression rubber
PIX-X'set®-VS Variator coated belts
Use: Variable speed drives requiring precise speed control and maximum speed variation range, recreational equipment, machine tools, etc.
ISO 3410:1989 / BS 3733:1974
Features
- Excellent transverse stiffness and longitudinal flexibility allows stable belt operation even on small diameter pulleys where there is high "stress" on the belt
- Good adhesion with contact area provides good traction for precise speed control
- Higher transmission capacity
- Longer service life
- Facilitates smooth running without excessive vibration
- Temperature range: -18°C to +80°C
Design details
- Wear-resistant, neoprene rubberized polyester cotton fabric
- Specially treated polyester cords with high strength, low stretch
- Specially compounded high modulus compression rubber
____________________________________________________________________________________
TOOTHED V-BELTS
PIX-X'tra® Cut belts with internal toothing
Applications: compressors, pumps, fans, pumps, blowers, generators, heat exchangers, industrial drives, etc.
-IS 2494, BS 3790, ISO 4184 - RMA IP 22 - RMA IP 23
Features
- Higher transmission capacity than coated belts
- Internal gearing provides greater flexibility and faster heat dissipation
- Suitable for drives with smaller diameter pulleys and high speeds
- Anti-static, oil and heat resistant
- Maximum linear speed (classic profile: up to 30 m/s, narrow (ISO): up to 42 m/s, narrow(RMA): up to 45 m/s)
- Temperature range: -25°C to +100°C
Design details
- Special textile layer
- Rubber compound cushions
- Specially treated and stabilized polyester cord
- Fibre filled base fabric
- Molded toothing for improved flexibility
PIX-X'tra®-XP Cut V-belts
Application: industrial equipment, agricultural machinery, lawn mowers, engine drives, etc.
IS 2494, BS 3790, ISO 4184 - RMA IP-22 - RMA IP-23
Features
- Higher transmission capacity than coated belts
- Excellent transverse stiffness and high wear resistance
- Multi-layer construction with fabric eliminates cracks at the bottom of the belt
- Anti-static, oil and heat resistant
- Suitable for back pulley applications
- Temperature range: -25°C to +100°C
Construction details
- Special textile layer
- Rubber compound cushions
- Specially treated and stabilized polyester cord
- Fibre filled base fabric
- Molded toothing for improved flexibility
PIX-X'tra®-XL Cut multilayer wedge
Application: industrial equipment, agricultural machinery, lawn mowers, engine drives, etc.
IS 2494, BS 3790, ISO 4184 - RMA IP-22 - RMA IP-23
Features
- Higher transmission capacity than coated belts
- Excellent transverse stiffness and high wear resistance
- Multi-layer construction with fabric eliminates cracks at the bottom of the belt
- Anti-static, oil and heat resistant
- Suitable for back pulley applications
- Temperature range: -25°C to +100°C
Construction details
- Special top textile layer
- Specially treated and stabilized polyester cord
- Fiber-filled base fabric
- Multi-layered fabric provides extra strength and acts as a barrier against back-bending cracks
PIX-Muscle®-XR3 High-performance maintenance-free timing belt with internal toothing
Application: high temperature industrial drives, compressors, blowers, high performance presses, hot rolling mills, textile machinery, fans, excavators, pumps, generators, crushers, etc.
-BS 3790, ISO 4184 - RMA IP-22
Features
- High performance - up to 50% higher than standard belts
- Temperature resistance up to + 130 °C
- Special design with internal gearing provides increased flexibility and faster heat dissipation
- Provides optimum performance with high transmission efficiency of up to 98%
- Maintenance-free belt - less machine downtime and extended service life
- Anti-static, ISO 1813 compliant
- Space saving potential
- REACH and RoHS compliance
- Smooth operation with minimal drop
Design details
- High-strength, maintenance-free, premium cord for lower belt elongation
- Fiber-reinforced EPDM base compound offers superior heat resistance and minimizes abrasion for longer life
- Specially designed toothing design increases belt flexibility and accelerates heat dissipation rate
PIX-Duo®-XR Double-sided cut V-belt with double-sided toothing
Applications: rice hullers, rice mills, serpentine drives, textile units, etc.
Reference standards: - IS 11038-1984
Features
- Highly flexible, suitable for small diameter pulleys
- Better and faster heat dissipation
- Power transmission from both sides of the belt
- Higher performance compared to standard double-sided (hexagonal) belts
- Suitable for serpentine drives
- Anti-static, oil and heat resistant
- Temperature range: -25°C to +100°C
Design details
- Pressed pins for greater flexibility
- Specially treated and stabilized polyester tension member
- Specially compounded high modulus rubber
PIX-Xtra®-XV Variator cut belts with internal toothing
Use: Variable speed drives requiring precise speed control and maximum speed variation range, recreational equipment, machine tools, etc.
RMA IP-25/1991 - ISO 3410:1989 (E) / ASAE S211-4
Features
- Excellent transverse stiffness and longitudinal flexibility prevent buckling in small diameter pulleys
- Excellent grip prevents slippage in high speed operation
- Longer service life
- Smooth running without excessive vibration
- Temperature range: -25°C to +100°C
Design details
- Special textile layer
- Specially treated and stabilized polyester cords
- Fiber-filled base material
- Molded pins for better flexibility and also protected by a tear-resistant base fabric

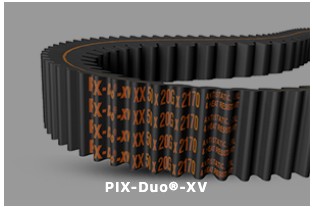

PIX-Duo®-XV Variator cut belts with internal and external toothing
Use: Textile machines, milling machines, etc.
PIX proprietary
Features
- Reversible toothed profile offers increased flexibility and higher heat dissipation rates
- Excellent dimensional stability
- High lateral rigidity
- Designed specifically for smooth running on smaller diameter pulleys
- Temperature range: -25°C to +100°C
Design details
- Press-fit pins for improved flexibility and faster heat dissipation
- Specially treated polyester cords for high tensile strength and minimal elongation
- High-modulus fiber-filled base compound
- Molded gearing for improved flexibility
PIX-FRAS®-XR Fire-resistant anti-static cut belts with internal toothing
Applications:Petrochemical industry, coal mines, fire-prone areas, pumping stations, applications involving flammable substances, etc.
ATEX Certification - IS 2494 Part-II - ISO 1813 - BS 3790, ISO 4184 - RMA IP-22
Features
- Provide a high level of protection against fire hazards
- Fire resistance properties comply with IS 2494 Part-II
- Antistatic values are 10 to 15 times higher than the maximum specified value, according to ISO 1813
- ATEX certification
- Resistance to the release of flammable substances during operation
- Increased heat dissipation rate
- Excellent performance on smaller diameter pulleys
- Longer service life
- Temperature range: -25°C to +100°C
Design details
- Special textile layer
- High-strength FRAS cord rubber insert
- Specially treated and stabilized polyester cord
- Fiber-filled high-modulus base compression rubber to meet fire-resistant and anti-static properties
- Molded toothing for improved flexibility
PIX - MUSCLE®-XR4 High-performance maintenance-free timing belt with internal toothing
Application: high temperature industrial drives, compressors, blowers, high performance presses, hot rolling mills, textile machinery, fans, excavators, pumps,
Reference standards: - BS 3790, ISO 4184 - RMA IP-22
Features
- Higher durability ensuring a faster return on investment
- Extended temperature range from -50°C to +130°C to provide optimum performance in a variety of applications
- Maintenance-free belt with minimal service costs
- High performance compared to standard belts
- Special belt coating for increased flexibility and abrasion resistance
- High transmission efficiency of up to 98%, resulting in increased productivity and reduced cost of ownership
- Special design with internal gearing provides increased flexibility and faster heat dissipation
- Anti-static, ISO 1813 compliant
- Space saving potential - compact drives
- REACH and RoHS compliant
Design details
1.Specially designed rubber top provides excellent flexibility and resists abrasion loss.
2.Specially designed EPDM compound with extreme bonding for superior durability.
3.High strength, maintenance free EPDM polyester cord for negligible elongation.
4.Specially designed EPDM blend with fibers for superior force transfer.
5. Specially designed gear design with stretch fabric for increased belt flexibility, burst resistance and accelerated heat dissipation.
