Are you planning to choose a V-belt and thinking about choosing the right pulley? If so, it is crucial to choose a product according to your specific requirements. It is often difficult to choose the right product, especially because you cannot measure the pulley accurately.
Measurements
To avoid improper pulley selection, it is essential to learn how to measure the pulley correctly. Let's take a look at a few steps to help you through the process.
1. Measuring the diameter: when selecting a V-belt pulley, it is essential to first measure the outer diameter according to your specific requirements. Measuring the outside diameter (OD) of the pulley is essential for proper sizing. Ignoring this step can lead to improper pulley sizing and affect machine functionality.
2. Determining the profile: it is necessary to measure the groove width to correctly select the profile of the V-belt pulleys (SPZ,SPA,SPB,SPC).
SPZ - suitable for belt profile 10/Z(ZX), 9,5/SPZ(XPZ)
SPA - suitable for belt profile 13/A(AX), 12,5/SPA(XPA)
SPB - suitable for profile belts 17/B(BX), 16/SPB(XPB)
SPC - suitable for profile belts 22/C(CX), 21/SPC(XPC
3. Determination of the number of grooves: another determining factor for the correct selection is the number of grooves if it is a multiple pulley.
4. Measuring the diameter of the shaft on which the pulley is mounted: this parameter ensures that the correct Taper-bush is fitted.

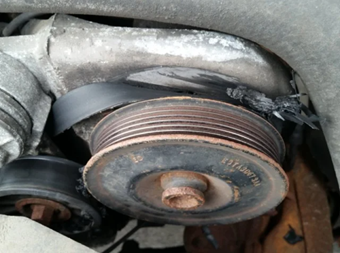

Recognising V-belt wear is key to maintaining optimum machine performance and preventing unplanned breakdowns. Below are some signs that may indicate pulley wear:
- Surface cracks or indentations:
- Check the surface of the V-belt pulley regularly. Cracks or nicks in the surface may indicate wear or damage. Such defects can affect power transmission and lead to improper operation.
- Material withdrawal:
- If any material is coming off the V-belt pulley or any weight loss is visible, this may be an indication of wear or material degradation. Remaining mass can also cause uneven force transmission.
- Irregular sound:
- Observe the machine sounds during operation. Irregular sounds or squeaks may be caused by pulley wear. Sounds that are not normal may indicate a problem.
- Uneven belt tension:
- Check the V-belt tension. If the belt is too loose or too tight, it may cause pulley wear. Proper tension is critical for optimum performance.
- Vibration or excessive movement:
- Significant vibration or irregular movement of the V-belt can be a sign of wear or an unbalanced condition. This condition can also cause other power transmission problems.
- Dimensional changes:
- Measure the dimensions of the V-belt regularly. Dimensional changes, especially thinning or shortening, may indicate material wear.
- Loss of shape or deformation:
- Warping or loss of the original shape of the V-belt pulley can be a sign of wear. This can affect the efficiency and stability of the power transmission.
If you observe any of these signs, it is recommended that you perform a thorough inspection and replace the worn pulley if necessary. Regular maintenance and attention to these details can prevent unplanned failures and extend the life of the V-belt pulleys.
